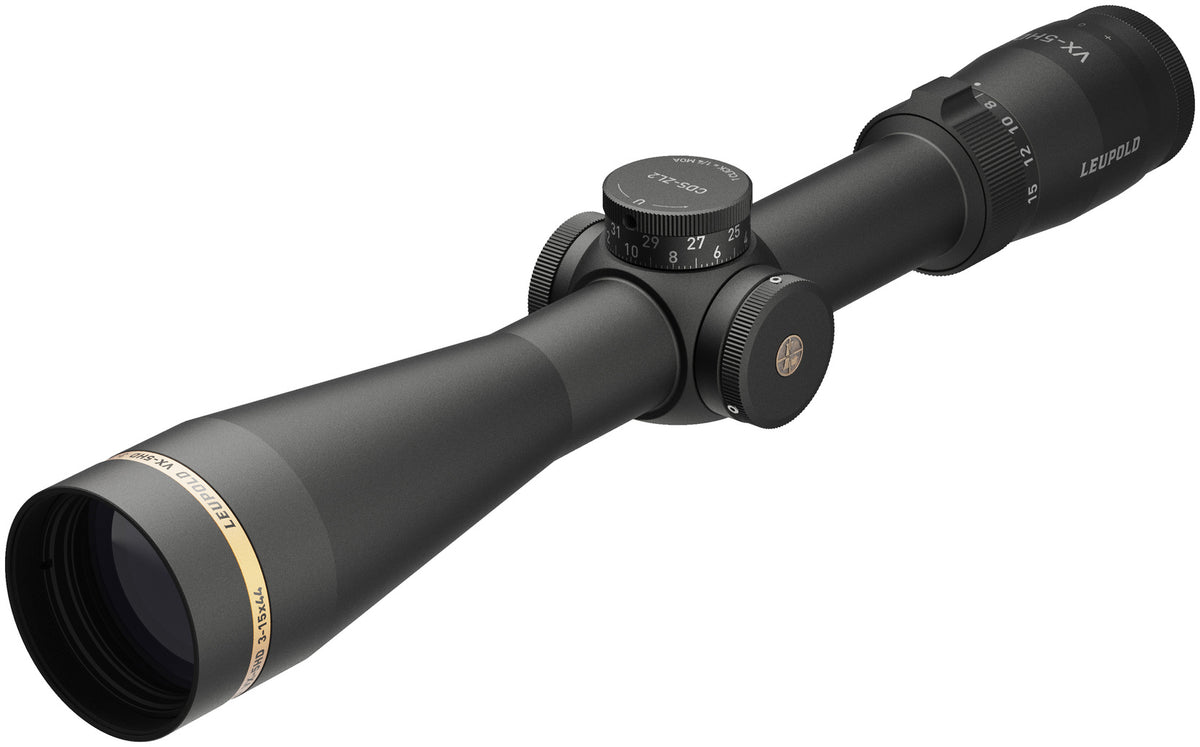

The Leupold VX-5HD 2-10x42 CDS-ZL2 Matte Firedot Duplex is a lightweight, premium hunting riflescope built for versatility in any environment. With its 2-10x magnification, wide field of view, and Firedot® Duplex illuminated reticle, it delivers fast target acquisition at close range while maintaining exceptional precision for longer shots.

Built around Leupold's Professional-Grade Optical System, the VX-5HD provides outstanding light transmission, industry-leading glare reduction, and crystal-clear resolution in challenging lighting conditions. The CDS® ZeroLock® 2 (CDS-ZL2) elevation dial allows for fast, repeatable adjustments with a secure zero lock, giving hunters confidence when shooting at extended distances.

As one of the lightest and toughest riflescopes in its class, the VX-5HD is 100% waterproof, fogproof, and shockproof. Designed, machined, and assembled in the USA, it is backed by Leupold's Full Lifetime Guarantee for dependable performance in the harshest conditions.

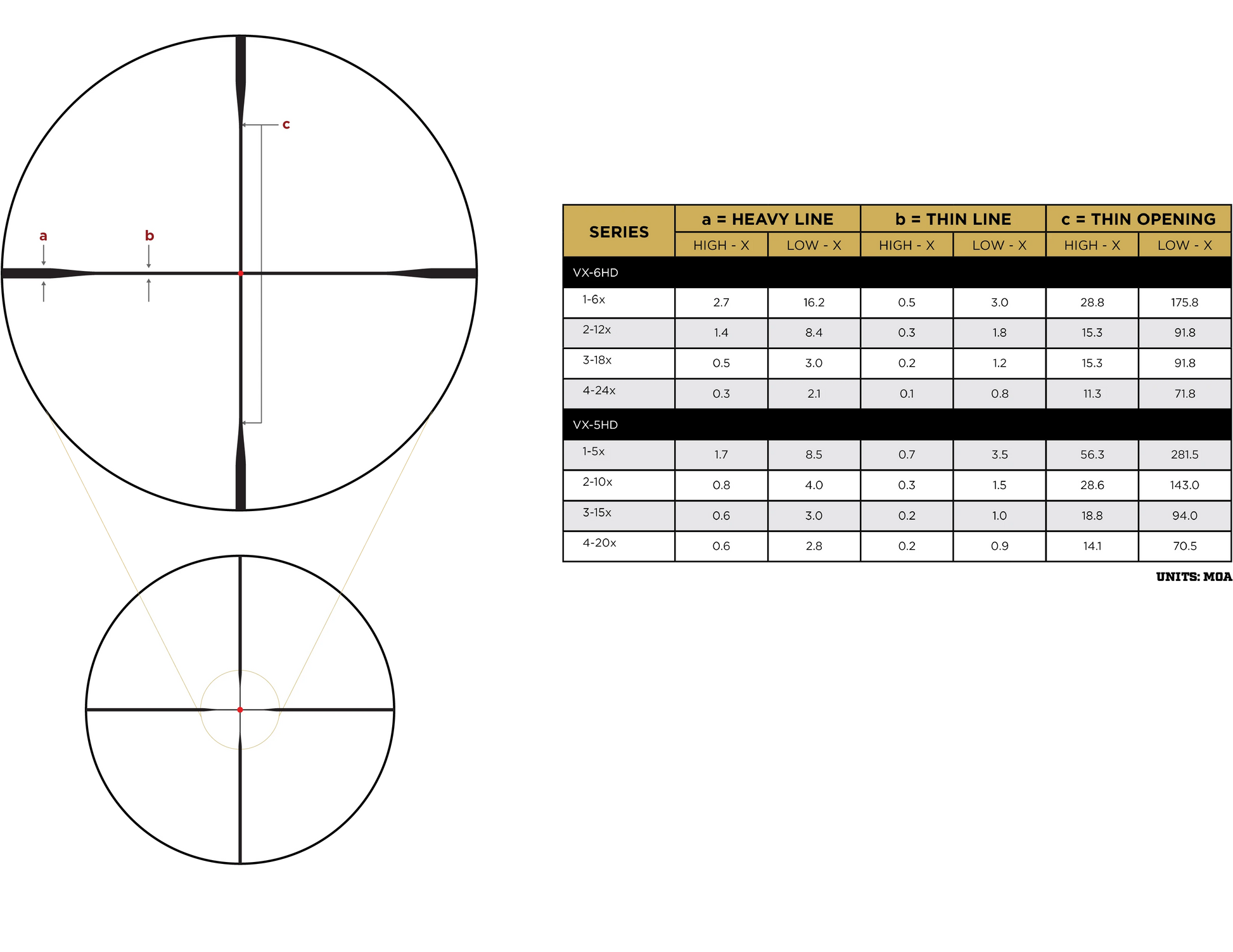

Detailed reticle info

FireDot® Duplex® Illum.

Download PDF

• Brings new technology to a classic design
• Fiber-optic powered red dot
• Multiple brightness settings for changing conditions
• FireDot® Technology brings your eye to the center of the reticle for quick target acquisition
• Broad range of shooting applications
• Rear (second) focal plane

Specifications

More Information

Battery Type	CR2032
BDC Dial Included	No
Custom Dial System (CDS)	Yes
Custom BDC Dial Compatible	Yes
Daylight Bright Illumination	Yes
Elevation Adjustment Type	CDS-ZL2
Electronic Reticle Level	No
Light Management System	Professional-Grade Optical System
Locking Dial	Yes
Magnification Type	Variable
Nightvision Compatible Illumination	No
Reticle Focal Plane	Second Focal Plane
Revolution Indicator	Yes
Reticle	Illum. FireDot Duplex
Rezero Type	Set Screw
Reticle Type	Illuminated
Adjustable Objective	No
Precision Side Focus	No
Switch Type	Push Button
Windage Adjustment Type	Pop-Up Rezero
Weight (oz)	18.9
Elevation Adjustment Value per Click	1/4MOA
Elevation Adjustment Range (MOA)	70
Elevation Adjustment Range (MIL)	20
Elevation Adjustment Range (cm @ 100m)	204
Elevation Adjustment Per Revolution	20 MOA
Elevation Dial Travel Limit	38MOA
Windage Adjustment Value per Click	1/4MOA
Windage Adjustment Range (MOA)	70
Windage Adjustment Range (MIL)	20
Windage Adjustment Range (cm @ 100m)	204
Windage Adjustment Per Revolution	20 MOA
Magnification Max	10
Magnification Min	2
Objective Lens Diameter (mm)	42
Linear FOV Low Mag (ft@100yds)	56.5
Linear FOV High Mag (ft@100yds)	11.5
Angular FOV Low Mag (Degrees)	10.8
Angular FOV High Mag (Degrees)	2.2
Eye Relief Low Mag (in)	3.7
Eye Relief High Mag (in)	3.8
Fixed Parallax-Free Distance (yd)	150
Battery Life (hr), Low Intensity	1600
Battery Life (hr), Medium Intensity	1000
Battery Life (hr), High Intensity	300
Number of Illum Settings	8

Dimensions

A Total Length (in) – A	12.6
B Total Mounting Space (in) – B	5.6
C Front Mounting Space (in) – C	1.7
D Rear Mounting Space (in) – D	2.6
E Eyepiece Length (in) – E	3.3
F Objective Length (in) – F	3.6
G Objective Diameter (in) – G	2
H Eyepiece Diameter (in) – H	1.8
K Maintube Diameter (mm/in) – K	30 mm
